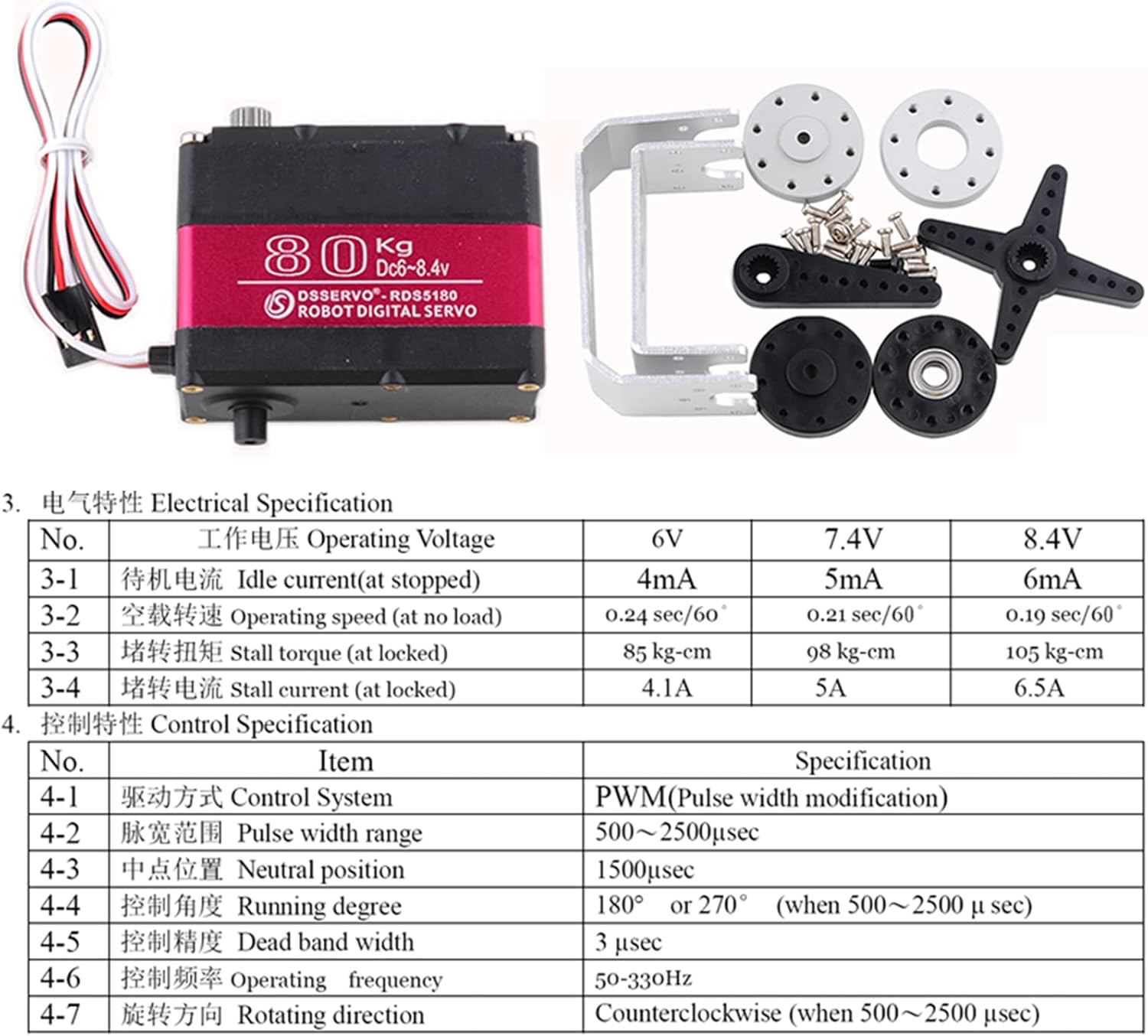

RDS5180 80kg Digital Metal Robotic Servo Motor High Torque Double-Shaft Robot Servo Arm Waterproof IP66 with U Metal Brackets for RC Car DIY Robot (180°)
4.2 (28 items)
Limited Time SaleUS$21.35 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 216425268 | Release Date | 2026/04/19 | List Price | US$14.24 | Model Number | 216425268 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Description Apply Environmental Condition Storage Temperature Range: -30℃～80℃ Operating Temperature Range: -15℃～70℃ Operating Voltage Range: 6-8.4V Mechanical Specification Size: 65*30*48mm Weight: 163g Gear ratio: 357 Bearing: Double bearing Connector wire: 300±5mm Motor: 3-pole(s) Electrical Specification Idle current(at stopped): 4mA@6V / 5mA@7.4V / 6mA@8.4V Operating speed (at no load): 0.24 sec/60°@6V / 0.21 sec/60°@7.4V / 0.19 sec/60°@8.4V Stall torque (at locked): 85 kg-cm@6V / 98 kg-cm@7.4V / 105 kg-cm@8.4V Stall current (at locked): 4.1A@6V / 5A@7.4V / 6.5A@8.4V Control Specification Control System: PWM(Pulse width modification) Pulse width range: 500～2500μsec Neutral position: 1500μsec Running degree: 180°or 270°(when 500～2500μsec) Dead band width: 3 μsec Operating frequency: 50-330Hz Rotating direction: Counterclockwise (when 500～2500μsec)
- Full stainless steel gears, CNC aluminium middle Shell, dual ball bearing
- The best volts is 7.4V, It’s recommended to use 2S battery for power supply 6-8.4V
- Operating speed (at no load): 0.24 sec/60°@6V / 0.21 sec/60°@7.4V / 0.19 sec/60°@8.4V
- 80kg Robotic Servo for 1/5 RC car, crawler and robot. Widely used in remote control crawler cars vehicle truck boat aircraft helicopter robot arm ect
- Please feel free to ask any questions you may have and will respond within 24 hours. We will give you a satisfactory solution
| Brand Name | Wishiot |
|---|---|
| Item Weight | 163 Grams |
| Bearing Type | Ball Bearing |
| Manufacturer | Wishiot |
| Material Type | Metal |
| Bearing Number | 2 |
| Item Thickness | 48 Millimeters |
| Item Type Name | servo |
| Item Dimensions | 0.2 x 0.12 x 0.39 inches |
| Included Components | Accessories |
| Compatible Lubricant | Grease |
