Industrial ESP32-S3 Control Board with RS485 and CAN Communication Interfaces for Connecting External RS485 and CAN Devices, Supports 2.4GHz Wi-Fi and Bluetooth 5, Built-in Protection Circuits

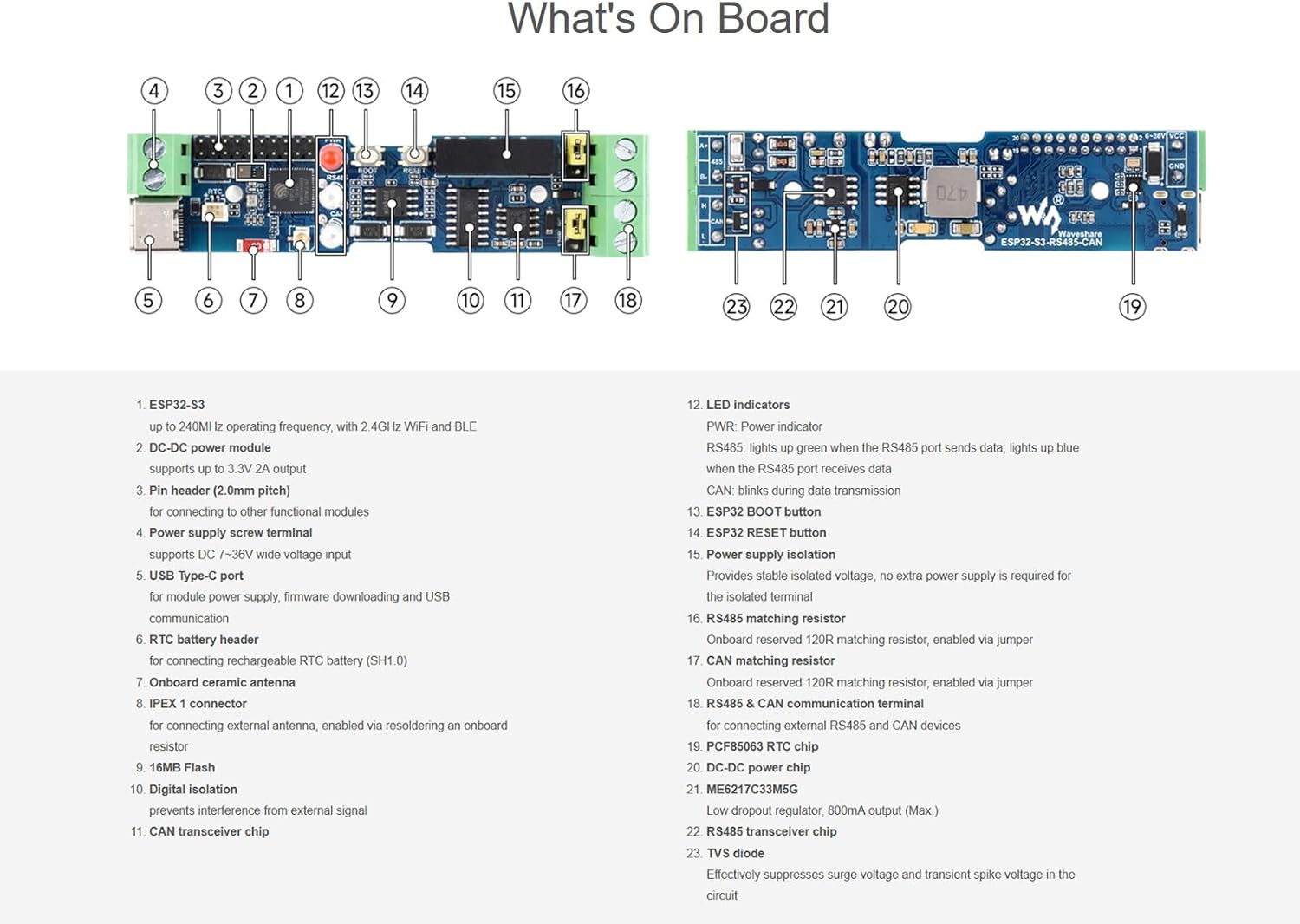

Introduction ESP32-S3-RS485-CAN is an industrial-grade WiFi wireless communicator based on ESP32-S3 master control that supports WiFi, Bluetooth, RS485, CAN and other peripheral interfaces. It has built-in protection circuits such as power supply isolation and optocoupler isolation, which is safe, stable and reliable, and suitable for the AIoT field. Features Based on ESP32-S3 microcontroller with 32-bit LX7 dual-core processor, capable of running at 240 MHz Integrated 2.4GHz Wi-Fi and Bluetooth 5 (LE) dual-mode wireless communication, with superior RF performance Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors Onboard isolated CAN interface for easy access to various CAN devices Onboard pin header for connecting external devices Onboard USB Type-C port for power supply, firmware downloading and debugging Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications Onboard RTC chip, supports scheduled tasks Onboard digital isolation to prevent interference from external signal Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply is required for the isolated terminal Onboard RS485 TX/RX indicators and CAN indicator for monitoring the operating status of the module Rail-mounted protective case, easy to install, safe to use Package Content ESP32-S3-RS485-CAN x1 SH1.0 4PIN cable ~150mm x1 Screwdriver x1 NOTE: Online Development Resources and Technical Support are provided, please feel free to contact us if you have any problem!

• ESP32-S3-RS485-CAN industrial controller based on ESP32-S3 microcontroller with 32-bit LX7 dual-core processor, capable of running at 240 MHz. Integrated 2.4GHz Wi-Fi and Bluetooth 5 dual-mode wireless communication, with superior RF performance
• Onboard isolated RS485 interface, for connecting to various RS485 Modbus industrial modules or sensors. Onboard isolated CAN interface for easy access to various CAN devices. Onboard pin header for connecting external devices
• Onboard USB Type-C port for power supply, firmware downloading and debugging. Onboard RTC chip, supports scheduled tasks. Onboard power supply screw terminal, supports 7~36V wide voltage input, suitable for industrial applications
• Onboard digital isolation to prevent interference from external signal. Onboard unibody power supply isolation, providing stable isolated voltage, no extra power supply is required for the isolated terminal

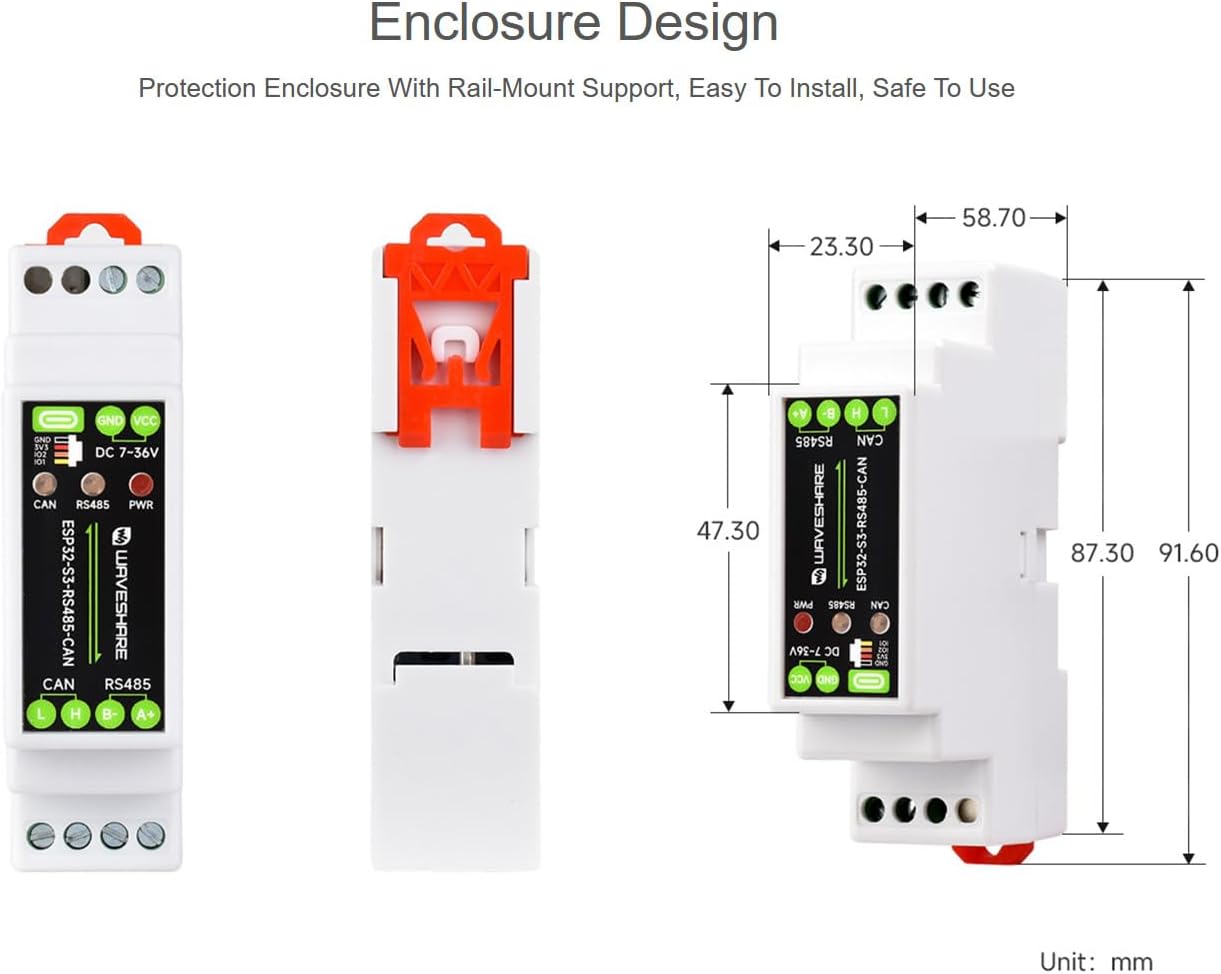

• Onboard RS485 TX/RX indicators and CAN indicator for monitoring the operating status of the module. Rail-mounted protective case, easy to install, safe to use
