4 Bar T-MAP Outlet Supercharger Pressure Sensor Replacement for 2015+ Corvette Z06 Camaro ZL1 CTS-V 6.2L V8 LT4 12644807
4.8 (107 items)
Limited Time SaleUS$15.00 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 217699235 | Release Date | 2026/04/19 | List Price | US$10.00 | Model Number | 217699235 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

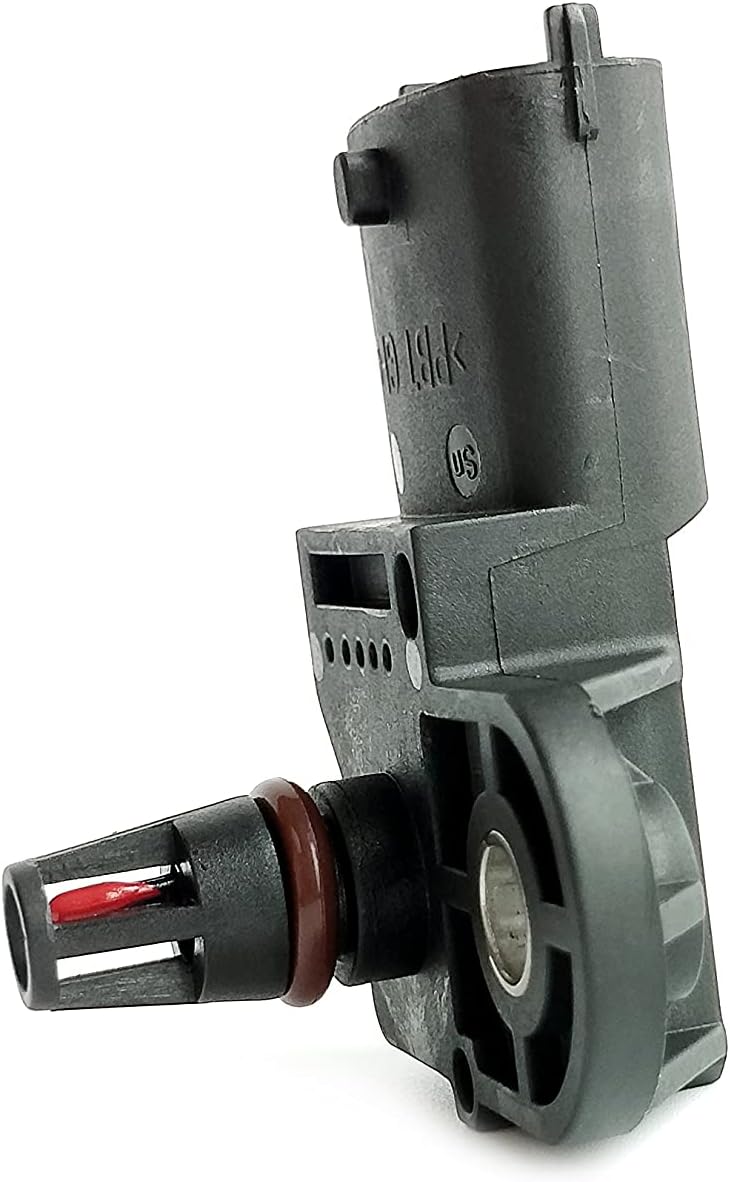

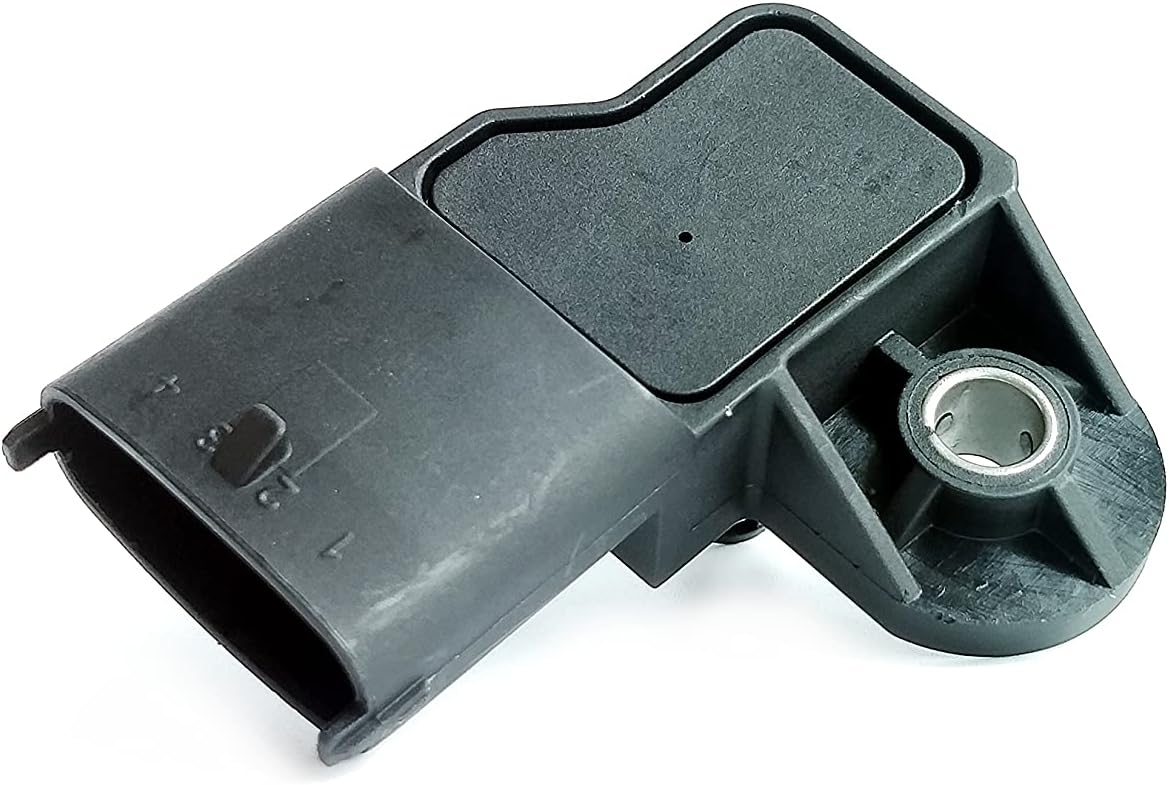

The LT4 supercharger has a 4 wire T-MAP sensor in the rear location (Outlet). 11-372 kPa ; 485-4750 mV This sensor fits: Note:Supercharger Pressure Sensor - Outlet 2017-2024 Chevy Camaro ZL1 Coupe 6.2L V8 LT4 VIN: 6 2017-2024 Chevy Camaro ZL1 Convertible 6.2L V8 LT4 VIN: 6 2015-2019 Chevy Corvette Z06 6.2L V8 LT4 VIN: 6 2019 Chevy Corvette ZR1 6.2L V8 LT5 VIN: 9 2016-2019 Cadillac CTS-V 6.2L V8 LT4 VIN: 6 2022-2025 Cadillac CT5-V Blackwing 6.2L V8 LT4 VIN: 6 2023-2025 Cadillac Escalade/Escalade ESV 6.2L V8 LT4 VIN: 6
- 4 BAR Air Pressure & Temp Sensor Boost Sensor for GM LT4 LT5
- Replaces Part Numbers: 12644807, 25203651, 12612111, 213-4766
- 4-pin Type, Located on the supercharger air outlet tube
- Compatible with LT4 Camaro 2016-up, LT4 Corvette 2014-up
- The LT4 supercharger has a 4 wire T-MAP sensor in the rear location.
| Model | 213-4766 |
|---|---|
| Brand Name | NATAFOX |
| Style Name | Modern |
| Item Weight | 0.05 Kilograms |
| Output Type | Analog |
| Manufacturer | A-Redline Auto Parts |
| Mounting Type | Flange Mount |
| Measuring Range | 11-372 kPa |
| Included Components | Supercharger Pressure Sensor - Outlet |
| Measurement Accuracy | ±1.5% |
| Warranty Description | 180 Days Limited Warranty |
| Maximum Supply Voltage | 4.75 Volts |
| Specific Uses For Product | Air Pressure and Temperature Sensor, LTG 2.0L/ LT4 LT5 6.2L |
